Wall Tiles

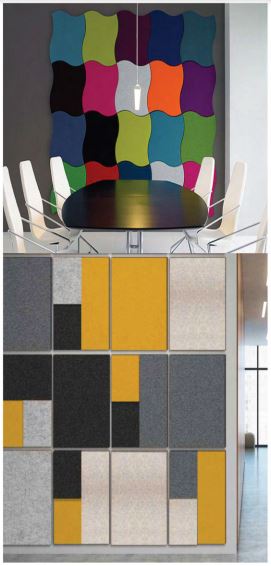

ACOUSTIC VIVA TILES
Viva Tiles are a wall-mounted acoustic system available in customizable panel sizes and over 46 felt colors with exposed or wrapped edge.These wall panels provide all-natural texture, sound soaking superpowers with an NRC of 0.65 and 0.75, and ship complete with Z-Clips or double sided tape for easy hanging.
| Content | 100% Wool Design Felt Eco Felt Substrate (60% post-consumer recycled content) |
| Panel Sizes | Minimum: 6 sq ft (0.56 sq m) |
| Thickness | 13mm+13mm+3mm+6mm air gap, Total(35mm) 13mm+3mm+6mm air gap, Total (12mm) |
| Edge Options | Exposed or wrapped |
| Mounting | Z-Clips or direct apply |
| Custom | Custom sizes and shape are available |
| Lead Time | Made to order and certain lead times will apply |
| Installation | Installs with mounting hardware provided (wall screws not included) |
| Maintenance | Vacuum occasionally to remove general air-borne debris. Should soiling occur, spot clean with mild soap and lukewarm water. Avoid aggressive rubbing as this can continue the felting process and change the surface appearance of the felt. Refer to 100% Wool Design Felt Maintenance + Cleaning for detailed care instructions. |
| Variation | Wool felt is a natural material and color variation and inclusions of natural fiber on the surface are evidence of the 100% natural origin of the material. Product color is only indicative, as it is not possible to assure consistency of color in natural product due to the natural color of raw wool and absorption of dyes. Color matching cannot be guaranteed between individual panels and expect color variation beyond the normal commercial range. |
| Environmental | 100% Wool Design Felt is 100% biodegradable/compostable and Viva Tiles contains minimum 60% post-consumer recycled content and is 100% recyclable Contains no formaldehyde, 100% VOC free, no chemical irritants, and free of harmful substances 100% Wool Design Felt and Viva Tiles contribute to LEED© |

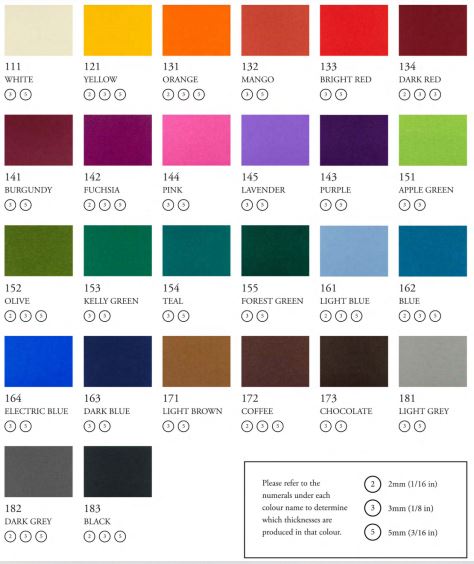

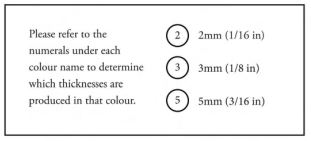

MONO DESIGNER FELT

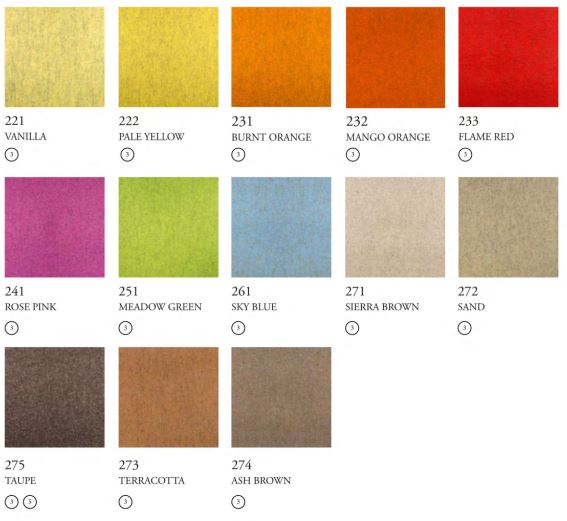

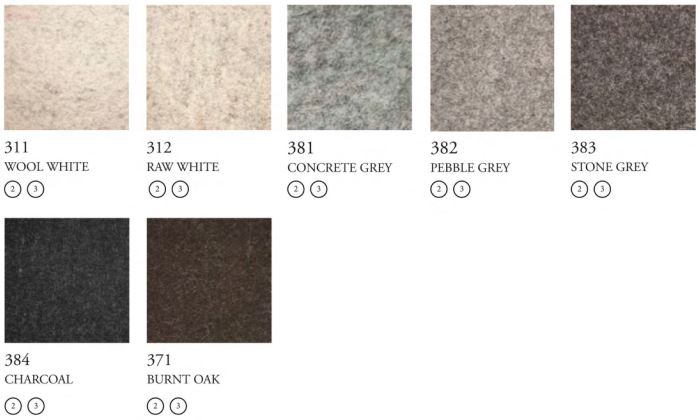

NATURAL DESIGNER FELT

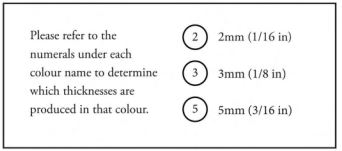

* Please note: colours which appear online or in print may differ slightly ftom actual felt. Slight colour variation may occur ftom dye lot to dye lot.
DUO DESIGNER FELT
* Please note: colours which appear online or in print may differ slightly ftom actual felt. Slight colour variation may occur ftom dye lot to dye lot.
DESIGNER FELT – TECHNICAL DATA SHEET
| Thickness and Weight Metric System | ||
| Thickness | Weight | |
| Nominal | Limits | Nominal |
| 2mm (approx. 1/16 in) | 1.7 – 2.3 | 1008 – 1080 g/lin. Meter ( Approx. 560 -600 g/m2) |
| 3mm (approx. 1/8 in) | 2.7-3.3 | 1512 – 1660 g/lin. Meter ( Approx. 840 – 922 g/m2) |
| 5smm (approx. 3/16 in) | 4.6-5.4 | 2520 – 2700 g/lin. Meter ( Approx. 1400 – 1500 g/m2) |
| Flammability | |
| ASTM E84 | Class A |
| Environmental | |
| Oeko-Tex®Standard 100 – Product Class I |  |
| Registration, Evaluation, Authorisation of Chemicals (REACH) VO (EG) Nr. 1907/2006 |  |
| Guideline for the restriction of certain hazardous substances in electrical and electronic equipment (RoHS) 2011/65/EU |  |
* Please note: colours which appear online or in print may differ slightly from actual felt. Slight colour variation may occur from dye lot to dye lot.

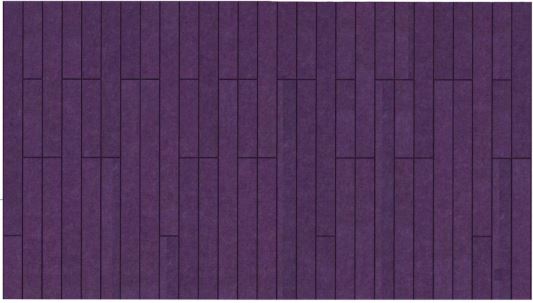

Plank Wall Panel
Dimensions:
Available Thicknesses: 12, 24 mm
* Custom shape and size available.
Product Data
Product Code – Planks
P/12/47.5″x95.5″ P24/47.S”x95.5″
Specifications
| Product Name | Plank Wall Panel |
| Composition | 100% polyester fibre |
| Edge Details | Bevelled |
| Fire Rating | • ASTM E84 Class A • CAN/ULC-S102.2-10 |
| VOC Emissions | CDPH (CA 01350) |
| Antimicrobial Testing | Mould & mildew resistant |
| Sustainability | • 100% recyclable • LBC Red List free • Contributes to LEED certification • Free of toxic substances and off-gassing • Made with 60% recycled content from plastic water bottles |
| How to Specify | • Product Name & Code • Dimensions • Colours • Installation Menthod |
| Colour & Texture Variations | The felting and dyeing process that forms the material contributes to its unique texture but also to variations in texture and colour from panel to panel. Products will be provided within an acceptable range of variation |

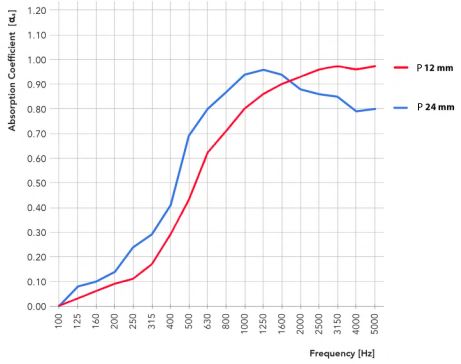

Acoustic Properties
The following values reflect the acoustic properties of the product as tested in accordance with ASTM C423-09a using Type A mounting.
| NRC | SAA | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A12mm | 0.55 | 0.54 | 0.10 | 0.12 | 0.18 | 0.30 | 0.44 | 0.63 | 0.72 | 0.81 | 0.87 | 0.91 | 0.94 | 0.97 |
| A24mm | 0.70 | 0.67 | 0.14 | 0.24 | 0.29 | 0.41 | 0.69 | 0.80 | 0.87 | 0.94 | 0.96 | 0.94 | 0.88 | 0.86 |
Installation
Specify one of the following options at the time of ordering.
Construction Adhesive
• By others Recommendation
• LePage PL Premium
Alternatives
• LePage PL Premium Max
• LePage No More Nails Heavy Duty LePage No More Nails Ultimate Crystal Clear
Z-clips
• 6 mm (¼ in) projection from the wall
• 25 mm (1 in) clearance required above the panel
Concealed Mechanical Fasteners
Product Care
Handling & Storage
Handle products with care to avoid folding the polyester felt, chipping its edges or indenting its faces.
Store products in their original containers in a well-ventilated area until the intended application environment is ready for installation. Allow products to acclimatize to environmental conditions. lay them flat on their faces; do not stand them on their edges. Protect from moisture, heat, direct sunlight and the elements.
Maintenance
Lightly brush or gently vacuum to remove dust from polyester felt. Clean with warm water and mild, non-toxic soap to remove spills. Test solution on an inconspicuous spot before applying to more visible areas. Blot with a dry cloth after applying the solution to avoid saturating the material, Avoid applying too much pressure when cleaning.
Warranty
Pro Acoustic Designs Inc. warrants the construction and finish of all our products to be free of defects in material and workmanship for a period of 5 years from the date of purchase.

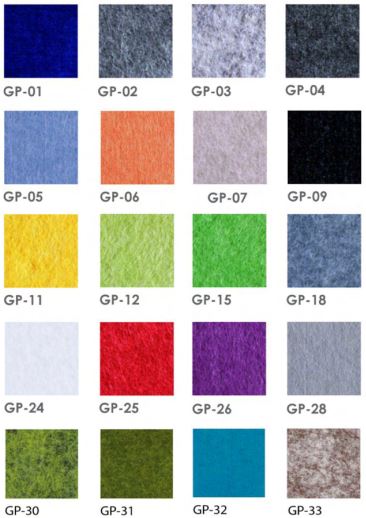

Colours
Available in 12, 24 mm
